Creating Barcode in Excel from C#
Here we show how to run Excel from a C# console application, how to create a barcode with Class-based version of StrokeScribe barcode generator and place the barcode into a workbook. The barcodes in Excel are stored as vector-based WMF pictures.
How to Proceed
- Download and install the barcode generator;
- Create a C# console application.
- Paste the following code into the project.
Creating a C# Barcode App
1. In Visual Studio, create a console application.
2. Execute Project->Add Reference and add a reference to Excel Object Library into the project:
3. Add a reference to StrokeScribe Class into the project:
4. Copy the following code into the project, build and run the application:
using System.IO;
using STROKESCRIBECLSLib;
using Excel = Microsoft.Office.Interop.Excel;
using Microsoft.Office.Core;
namespace ConsoleApplication1
{
class Program
{
static void Main(string[] args)
{
StrokeScribeClass barcode = new StrokeScribeClass();
barcode.Alphabet = enumAlphabet.CODE128; // or enumAlphabet.QRCODE or enumAlphabet.DATAMATRIX
barcode.Text = "1234ABCDE";
string pth = Path.GetTempPath() + "barcode.wmf"; // Creating a temporry barcode picture
int width = barcode.BitmapW;
int rc = barcode.SavePicture(pth, enumFormats.WMF, 1440, 1440); // 1440 TWIPs = 1 inch
if (rc != 0)
System.Console.Write(barcode.ErrorDescription);
Excel.Application x = new Excel.Application(); // Starting Excel
x.Visible = true;
x.Workbooks.Add();
Excel.Worksheet wsh = x.ActiveSheet;
Excel.Shape sh = wsh.Shapes.AddPicture(pth, MsoTriState.msoFalse, MsoTriState.msoTrue,
0, 0, (float)x.CentimetersToPoints(3), (float)x.CentimetersToPoints(3));
File.Delete(pth); // Removing the temporary picture
}
}
}

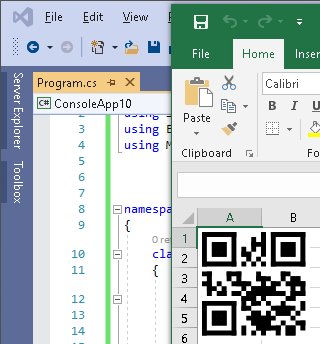

5. Switch to the Excel window and enjoy the barcode:
