Barcode generation in SQL Server Reporting Services

An example how to create barcode in SQL Server reports (SSRS) with StrokeScribe barcode generator. The barcodes shown in this article are GIFs - we do not use barcode fonts.

The SSRS library is free of charge, but you'll need to purchase a license for the barcode generator after testing the demo version.

How to Proceed

Download and install the barcode generator;
Download and install the barcode library for SSRS;
Start the Report Builder;
Create a new blank report.

NOTE: When upgrading or activating the barcode generator or the SSRS library, you need to stop and then restart the SQL Server Reporting service.

Preparing the Report

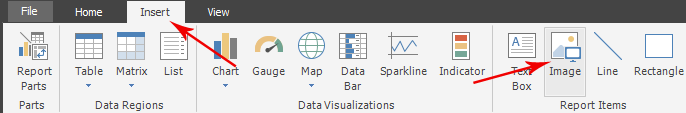

1. In the Report Builder, click Insert->Image. Then, click anywhere on the report to place the image.

2. In the Image Properties dialog, set the image source to Database and the MIME type to image/gif:

3. Click the fx button near the Use this field and paste the following code into the expression builder:

=code.CreateBarcode("123ABCDEF")

Or this, if you want to encode a database field content in the barcode:

=code.CreateBarcode(Fields!A.Value)

Press OK and OK.

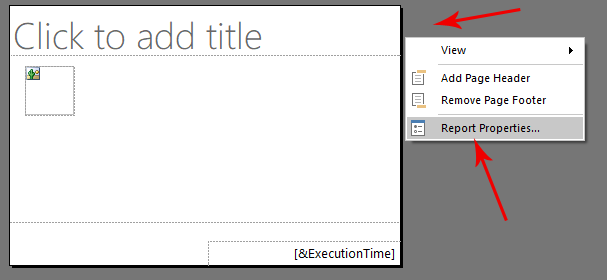

4. Right-click anywhere on the workspace outside of the report page. Select the Report Properties:

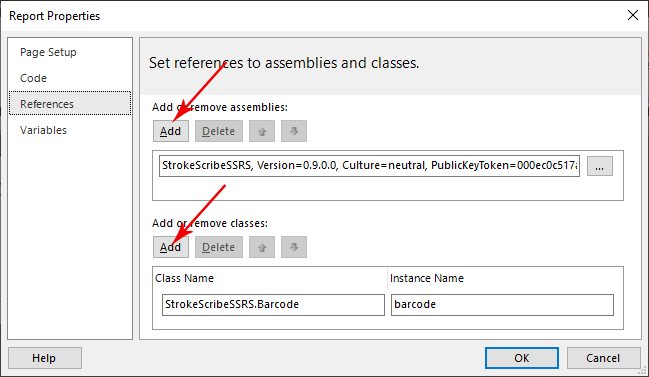

5. Switch to the References tab.

Adding a reference to the barcode generator assembly

5.1. Click Add at the Add or remove assemblies. Paste the following into the reference field:

StrokeScribeSSRS, Version=1.0.0.0, Culture=neutral, PublicKeyToken=000ec0c517a54332

5.2 Click Add at the Add or remove classes. Paste the following into the Class Name field:

StrokeScribeSSRS.Barcode

5.3. Paste the following into the Instance Name field:

barcode

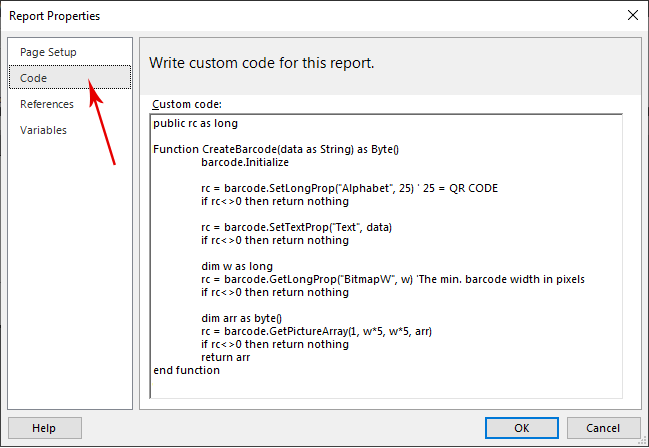

6. Switch to the Code tab.

6.1. Paste the following into the Custom code field:

public rc as long

Function CreateBarcode(data as String) as Byte()
	barcode.Initialize

	rc = barcode.SetLongProp("Alphabet", 25) ' 25 = QR CODE
	if rc<>0 then return nothing

	rc = barcode.SetTextProp("Text", data)
	if rc<>0 then return nothing

	dim w as long
	rc = barcode.GetLongProp("BitmapW", w) ' The min. barcode width in pixels
	if rc<>0 then return nothing

	dim arr as byte()
	rc = barcode.GetPictureArray(1, w*5, w*5, arr)  ' A square barcode picture with 5x5px modules
	if rc<>0 then return nothing

	return arr
end function

7. Run the report.

8. To debug your code, place a Text Box below the barcode image and use this as an expression:

=code.rc

Programming Examples

Here are some examples how to modify the above code to produce barcodes of different types.

All Barcode Types

Encoding ASCII Control Characters in the Barcode

rc = barcode.SetTextProp("Text", "AB" & chr(9) & "CD")

The barcode contains the following string: AB<TAB>CD.

How to Modify the Human-readable Label Below the Barcode

rc = barcode.SetTextProp("TextBelow", "XYZ")

This setting works with CODE128, CODE 39, I2OF5 barcodes.

How to Rotate the Barcode

rc = barcode.SetLongProp("Rotation", 90)

dim w as long
barcode.GetLongProp("BitmapW", w)

dim arr as byte()
rc = barcode.GetPictureArray(1, w*2, w*5, arr)
if rc<>0 then return nothing
return arr

You can rotate the barcode to 90, 180, 270 degrees.

QR Code

How to Create a QR Code Readable by Mobile Devices

To make barcodes with non-ASCII characters readable by mobile barcode readers, use the UTF-8 encoding.

The UTF-8 encoding can be enabled by setting the CodePage property to 65001.

public rc as long

Function CreateBarcode(data as String) as Byte()
  barcode.Initialize
  rc = barcode.SetLongProp("Alphabet", 25) ' 25 = QRCODE
  if rc<>0 then return nothing
  rc = barcode.SetLongProp("CodePage", 65001) ' 65001 = UTF8
  if rc<>0 then return nothing
  rc = barcode.SetTextProp("Text", "ΣΤΥΦΧΨΩ")
  if rc<>0 then return nothing
  dim w as long
  rc = barcode.GetLongProp("BitmapW", w)
  if rc<>0 then return nothing
  dim arr as byte()
  rc = barcode.GetPictureArray(1, w*2, w*2, arr)
  if rc<>0 then return nothing
  return arr
end function

How to Change the QR Code Error Correction Level

Use the QrECL property:

rc = barcode.SetLongProp("QrECL", 3) ' 3 = the highest error correction level

Data Matrix

How to Create a Data Matrix Barcode

public rc as long

Function CreateBarcode(data as String) as Byte()
  barcode.Initialize
  rc = barcode.SetLongProp("Alphabet", 8) ' 8 = DATAMATRIX
  if rc<>0 then return nothing
  rc = barcode.SetTextProp("Text", data)
  if rc<>0 then return nothing
  dim w as long
  rc = barcode.GetLongProp("BitmapW", w)
  if rc<>0 then return nothing
  dim arr as byte()
  rc = barcode.GetPictureArray(1, w*2, w*2, arr)
  if rc<>0 then return nothing
  return arr
end function

How to Force the Minimum Matrix Size to a Specific Value

To limit the minimum size of Data Matrix barcodes, use the DataMatrixMinSize property:

rc = barcode.SetLongProp("DataMatrixMinSize", 72)

How to Rotate the Barcode

rc = barcode.SetLongProp("Rotation", 90)

GS1 Data Matrix

An example of a GS1 barcode that contains Batch Number (AI 10) and Production Date (AI 11) fields.

Chr(29) is the ASCII <GS> control character that must be placed after a variable-length field.

More GS1 examples are available here.

public rc as long

Function CreateBarcode(data as String) as Byte()
  barcode.Initialize
  barcode.SetLongProp("Alphabet", 30) ' 30 = GS1DATAMATRIX

' Batch number + GS + Production Date
  rc = barcode.SetTextProp("Text", "10123ABCD" & chr(29) & "11120201")
  if rc<>0 then return nothing
  dim w as long
  rc = barcode.GetLongProp("BitmapW", w)
  if rc<>0 then return nothing
  dim arr as byte()
  rc = barcode.GetPictureArray(1, w*3, w*3, arr)
  if rc<>0 then return nothing
  return arr
end function

PDF417

How to Create a PDF417 Barcode

public rc as long

Function CreateBarcode(data as String) as Byte()
  barcode.Initialize
  barcode.SetLongProp("Alphabet", 6) ' 6 = PDF417
  rc = barcode.SetTextProp("Text", data)
  if rc<>0 then return nothing
  dim w as long
  rc = barcode.GetLongProp("BitmapW", w)
  if rc<>0 then return nothing
  dim h as long
  rc = barcode.GetLongProp("BitmapH", h)
  if rc<>0 then return nothing
  dim arr as byte()
  rc = barcode.GetPictureArray(1, w*3, h*3, arr)
  if rc<>0 then return nothing
  return arr
end function

How to Fix the Number of Rows or Columns in PDF417

barcode.SetLongProp("PDF417Cols", 10)
barcode.SetLongProp("PDF417Rows", 5)

You don't need to specify both values at the same time - the encoder calculates the second dimension to fit your data. But if you specify both and your data does not fit into the specified size, you will receive an error.

Code 128

public rc as long

Function CreateBarcode(data as String) as Byte()
  barcode.Initialize
  rc = barcode.SetLongProp("Alphabet", 5)  ' 5 = CODE128
  if rc<>0 then return nothing
  rc = barcode.SetTextProp("Text", data)
  if rc<>0 then return nothing
  dim w as long
  rc = barcode.GetLongProp("BitmapW", w)
  if rc<>0 then return nothing
  dim arr as byte()
  rc = barcode.GetPictureArray(1, w*5, w*2, arr)
  if rc<>0 then return nothing
  return arr
end function
