Making Barcode in Crystal Reports
Our User Function Library (the UFL) allows to use StrokeScribe barcode generator in Crystal Reports.
How to proceed
- Download and install the barcode generator
- Download and install the UFL DLL - V1.4.0.0
- The current UFL release requires the barcode generator version =>5.2.31.
The Crystal Reports UFL is free of charge, but you'll need to purchase a license for the barcode generator after testing the demo version.
How to create a Crystal report with a barcode

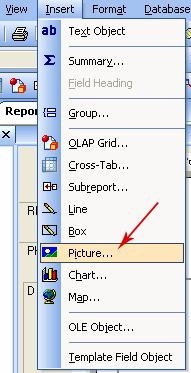

1. From the Crystal Reports designer menu, select Insert->Picture.
1.2. Choose absolutely any picture file - it will be a barcode placeholder for the first time.
Do not choose a large image for the placeholder. If you'll resize it, the barcode will be resized accordingly and may look too small.

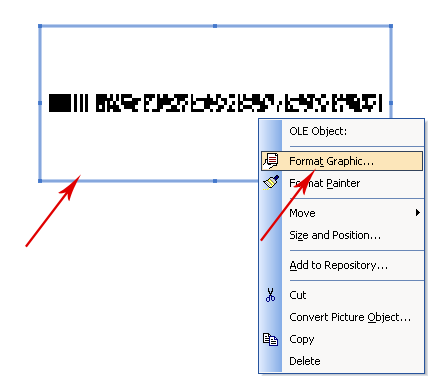

2. Right-click the picture, select Format Graphic from the context menu:

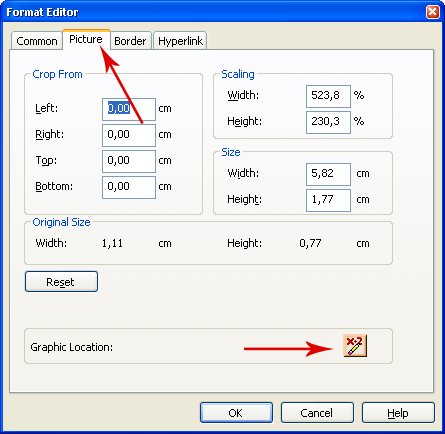

3. Switch to the Picture tab, press the Graphic location formula button:
4. Paste the following code into formula editor (select Basic Syntax in the toolbox).
do
dim rc as number
rc = BarcodeSetLongProp ("Alphabet", 5) ' A CODE-128 barcode
if rc<>0 then exit do
rc = BarcodeSetTextProp ("Text", "123ABCD") ' A text to encode in the barcode
if rc<>0 then exit do
' Creates a barcode in vector-based WMF format.
' Do not use the function with new releases of Crystal reports
' formula = BarcodePicture(1000, 300) -- The barcode picture size = 1000x300 TWIPs
formula = BarcodePicture2(1, 3) ' A CODE 128 with 1 pixel wide modules and width:height ratio of 3:1
' This funtion creates barcodes as raster pictures
loop while false
Due to a bug(?) in the latest Crystal Reports releases, it's not possible to use WMF format to render barcodes. The Graphic Location formula doesn't work with WMF pictures when printing a report.
5 (optional). To debug the code, create a formula field with the following expression and place it below the barcode picture:
formula = BarcodeGetErrorCode ()
Creating a barcode with information from a database/report field
Modify your code as shown below:
do
dim data as string
data = {Table1.Field1} & {Table1.Field3}
...
rc = BarcodeSetTextProp ("Text", data)
...
To paste a field name into the code, double-click it in the Field Tree (Alt+F):
