Barcode in SolidWorks

Some examples how to create barcodes in SolidWorks with our barcode generator.

The first and the easiest method is to put a barcode as an Active Document object onto your drawing. This barcode type is less customizable and cannot be CNC'ed.

The second method is to create a barcode as a vector picture in a temporary file (we use EMF) and then load it into a SolidWorks drawing. This method requires some VBA programming.

The third method is to draw a barcode in sketching mode with polygons.

How to Proceed

Download and install the barcode generator;
Create an empty part file in SolidWorks;
Use one of the following examples to insert a barcode.

Method #1: StrokeScribe Active Document

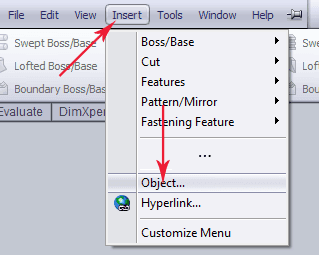

1. While running SolidWorks, open the main menu:

2. Click on Object at the bottom of the Insert menu.

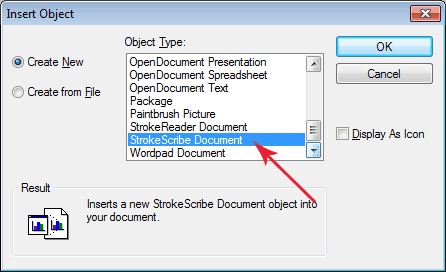

3. Select 'StrokeScribe document' from this list:

4. Drag the barcode picture into a place you need and resize the barcode using the thick border around it.

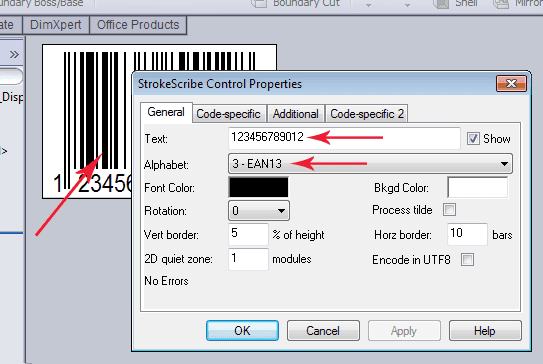

5. Double-click on the barcode picture to open barcode properties dialog.

For more information about barcode types and settings, please visit the Documentation section.

Method #2: VBA and Vector Pictures

This example shows how to insert a barcode into SolidWorks drawing using VBA and StrokeScribe barcode generator.

The main idea is to create a barcode image with SavePicture() method of the StrokeScribeClass object in the system's TEMP folder and then load it back into the drawing with SketchManager.InsertSketchPicture().

The Code Example

Execute Tools > Macro > New from the SolidWorks menu and paste the following code into the VBA editor.

Add a reference to StrokeScribe Class into the VBA project.

Expand/Collapse

Declare PtrSafe Function GetTempPath Lib "kernel32" Alias "GetTempPathA" (ByVal nBufferLength As Long, ByVal lpBuffer As String) As Long

Private Function TempPath() As String ' This function is a helper that calls the WinAPI's GetTempPath().
  Dim path As String

  path = String(256, 0)
  rc = GetTempPath(256, path)

  If rc <> 0 Then
    path = Left(path, rc)
  Else
    path = vbNullString
  End If
  TempPath = path
End Function


Sub main()
  pic_name = "barcode1" ' The name of a sketch picture on the drawing.
  pic_path = TempPath() & "barcode.emf" ' The path to store the temporary barcode picture on a disk.

  Dim swApp As SldWorks.SldWorks
  Set swApp = Application.SldWorks
  Set doc = swApp.ActiveDoc  ' We will place the barcode into the currently active drawing.

  doc.SelectByName 0, pic_name  ' If we already have a barcode picture on the drawing, let's delete it.
  doc.EditDelete

  Dim ss As StrokeScribeClass  ' The barcode generator object.
  Set ss = CreateObject("STROKESCRIBE.StrokeScribeClass.1")
  ss.Alphabet = DATAMATRIX  ' or =QRCODE
  ss.Text = "123ABC"  ' A text to be encoded in the barcode.

  rc = ss.SavePicture(pic_path, EMF, 50, 50)  ' This will store a 50x50mm barcode picture in a temporary file.
  If rc > 0 Then  ' In a case of error, this displays the error description message.
    MsgBox ss.ErrorDescription
    Exit Sub
  End If

  doc.EditSketch

  Dim SkPicture As SketchPicture   ' This loads the picture from the temporary file.
  Set SkPicture = doc.SketchManager.InsertSketchPicture(pic_path)

  SkPicture.SetSize 0.05, 0.05, True  ' Specifying barcode's position and size.
  SkPicture.SetOrigin 0.1, 0.1

  Dim feat As Feature  ' Let's change the name of the barcode object. This allows fo find and delete an old picture if we
  Set feat = SkPicture.GetFeature()                        ' need to update the barcode.
  feat.Name = pic_name
  doc.EditSheet

  Kill pic_path  ' We don't need the temporary picture file anymore.
End Sub

Method #3: VBA and Sketch Entities

This example shows how to draw a barcode in sketching mode. The sketch may be optionally extruded if you need a barcode made of solids.

The code is based on the ZebraBits property of the barcode generator that generates black/white (1/0) barcode patterns.

Here is a typical Data Matrix barcode:

And here is the zebra pattern created by ZebraBits:

The Code Example

Execute Tools > Macro > New from the SolidWorks menu and paste the following code into the VBA editor.

Add a reference to StrokeScribe Class into the VBA project.

Expand/Collapse

Private Sub draw_barcode(ByRef sm As SldWorks.SketchManager, zebra As String, r As Double)
  Dim x As Double
  Dim y As Double
  x = 0
  y = 0
  i = 1
  Do
     Z = Mid(zebra, i, 1)
     Select Case Z
     Case ""
        Exit Do
     Case "0"
        x = x + r 'We ignore white modules of the barcode
     Case "1"
        sm.CreateCircleByRadius x, y, 0, r / 2 - 0.0000001 ' Subtracting a very small value from the circle radius to avoid the "intersecting contours" error
        x = x + r
     Case Chr(10)
        x = 0
        y = y - r
     End Select
     i = i + 1
  Loop
End Sub

Sub make_barcode()
  Dim app As SldWorks.SldWorks
  Set app = Application.SldWorks

  Dim doc As SldWorks.ModelDoc2
  Set doc = app.ActiveDoc

  Dim skmgr As SldWorks.SketchManager
  Set skmgr = doc.SketchManager

  ' Deletes the previously extruded barcode
  If doc.Extension.SelectByID2("BARCODE3D", "BODYFEATURE", 0, 0, 0, False, 0, Nothing, 0) Then
    doc.EditDelete
  End If

  ' Deletes the previously created barcode sketch
  If doc.Extension.SelectByID2("BARCODE", "SKETCH", 0, 0, 0, False, 0, Nothing, 0) Then
    doc.EditDelete
  End If

  Dim ss As StrokeScribeClass
  Set ss = CreateObject("STROKESCRIBE.StrokeScribeClass.1")

  ss.Alphabet = DATAMATRIX 'or =QRCODE or =AZTEC
  ss.Text = "ABC"

  If ss.Error Then
    MsgBox ss.ErrorDescription
    Exit Sub
  End If

  Dim zebra As String
  zebra = ss.ZebraBits

  skmgr.AddToDB = True

  draw_barcode skmgr, zebra, 0.005  ' barcode module size = 5mm

  skmgr.AddToDB = False ' Speeds up insertion of multiple sketch entities

  Dim feat As SldWorks.Feature
  Set feat = skmgr.ActiveSketch
  feat.Name = "BARCODE"

  skmgr.InsertSketch True

  feat.Select False

  If False Then  ' Set this to True if you want to extrude the barcode
    Dim h As Double
    h = 0.001  ' Extrusion height in meters

    Set feat = doc.FeatureManager.FeatureExtrusion2(True, False, False, 0, 0, h, 0, False, False, False, False, 0, 0, _
      False, False, False, False, False, True, False, 0, 0, False)

    feat.Name = "BARCODE3D"
  End If
 End Sub

A barcode sketch:

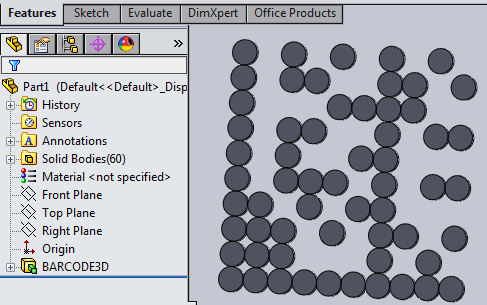

An extruded barcode:

Exporting barcodes into DXF
