Barcode in VB.NET

In this example, we will print barcode labels on laser and thermal printers using the standard .NET's PrintDocument and COM Class-based version of StrokeScribe barcode generator.

Requirements

Download and install the barcode generator.

Creating a Basic Barcode VB.NET Application

First, create a new VB.NET console application in Visual Studio:

Creating a new console application in Visual Studio

Now, add a reference to the StrokeScribe Class. Execute Project->Add Reference from the IDE menu, switch to the COM->Type Libraries in the Reference Manager and check the StrokeScribe Class as shown on the picture.

You will also need a reference to the System.Drawing namespace. Look for it in the Assemblies tab.

How to Save a Barcode Image into a File

1. In Visual Studio, create a new VB.NET console application project.

2. Add a reference to StrokeScribe Class.

3. Paste the following code into your project:

Imports StrokeScribeClass = STROKESCRIBECLSLib.StrokeScribeClass
Imports STROKESCRIBECLSLib.enumAlphabet
Imports STROKESCRIBECLSLib.enumQR_ECL
Imports Formats = STROKESCRIBECLSLib.enumFormats
Module Module1
    Sub Main()
        Dim barcode As New StrokeScribeClass

        barcode.Alphabet = CODE128
        barcode.Text = "123ABCD"

        Dim barcode_w As Integer = barcode.BitmapW * 3
        Dim barcode_h As Integer = barcode.BitmapW * 2

        Dim rc As Long
        rc = barcode.SavePicture("barcode.bmp", Formats.BMP, barcode_w, barcode_h)
        If rc <> 0 Then
            Debug.Print(barcode.ErrorDescription)
        End If
    End Sub
End Module

4. Build and run your application.

A barcode picture created with the VB.NET app

5. Look for the barcode.bmp in the project folder.

The application creates a barcode with the width:height proportion of 3:2. The BitmapW property returns the minimum picture width in pixels that fits the barcode. For best looking BMP/JPG/PNG images, always set the width as a multiple of the value reported by the BitmapW.

2D Barcodes

For 2D barcodes (QR COde, Data Matrix, PDF417), use the following code:

barcode.Alphabet = PDF417
rc = barcode.SavePicture("barcode.bmp", Formats.BMP, barcode.BitmapW, barcode.BitmapH)

Saving Barcodes as Vector Drawings

For vector based barcode pictures in EMF/WMF formats, you may specify any values for width/height.

WMF format accepts TWIPs (1440 TWIPs per inch):

barcode.Alphabet = QRCODE
rc = barcode.SavePicture("qrcode.wmf", Formats.WMF, 1440, 1440) ' 1x1 inch QR CODE

EMF accepts millimeters:

barcode.Alphabet = DATAMATRIX
rc = barcode.SavePicture("datamatrix.emf", Formats.EMF, 10, 10) '10x10mm. DATA MATRIX

Printing Barcodes in VB.NET

Paste the following code into the project:

Expand/Collapse

Imports System.Drawing
Imports System.Drawing.Printing

Imports StrokeScribeClass = STROKESCRIBECLSLib.StrokeScribeClass
Imports STROKESCRIBECLSLib.enumAlphabet
Imports STROKESCRIBECLSLib.enumQR_ECL
Imports Formats = STROKESCRIBECLSLib.enumFormats

Module Module1
    Sub Main()
        Dim PrintDoc As New Printing.PrintDocument
        AddHandler PrintDoc.PrintPage, AddressOf PrintHandler
        PrintDoc.Print()
    End Sub
    Private Sub PrintHandler(ByVal sender As Object, ByVal args As Printing.PrintPageEventArgs)
        Dim barcode As New StrokeScribeClass

        barcode.Alphabet = CODE128
        barcode.Text = "BARCODE"

        Dim barcode_w As Integer = barcode.BitmapW * 3
        Dim barcode_h As Integer = barcode.BitmapW * 2

        Dim olepicture As stdole.StdPicture
        olepicture = barcode.GetPictureHandle(Formats.BMP, barcode_w, barcode_h)

        If barcode.Error Then
            MsgBox(barcode.ErrorDescription)
            Return
        End If

        Dim img As Image
        img = Image.FromHbitmap(olepicture.Handle)

        Dim ag As Graphics = args.Graphics
        ag.PageUnit = GraphicsUnit.Pixel
        Dim bounds = ag.VisibleClipBounds

        Dim pos_x As Integer = bounds.Left + bounds.Width / 2 - barcode_w / 2 ' Centering the barcode on the page
        Dim pos_y As Integer = bounds.Top + bounds.Height / 2 - barcode_h / 2

        ag.DrawImage(img, pos_x, pos_y, barcode_w, barcode_h)

        Dim fnt As New Font("Arial", 10)
        ag.DrawString("A BARCODE LABEL", fnt, Brushes.Black, bounds.Left, bounds.Top + 10)

        args.HasMorePages = False ' Change this if you need to print multiple barcode labels at once
    End Sub
End Module

To build the code, you need to add a reference to the System.Drawing namespace.

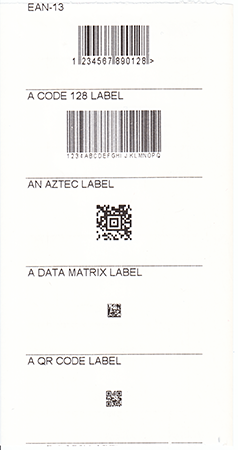

We tested the VB application with different barcode types on a Zebra thermal printer. Click the picture below to see the printout in high resolution (1Mb):

Printing to a Non-default Printer

If you want to select a printer instead of using the system default printer, do the following:

1. Import the Forms namespace:

Imports System.Windows.Forms

2. Add a reference to the System.Windows.Forms in the Reference Manager.

3. Modify the Sub Main() as follows:

Sub Main()
  Dim PrintDoc As New Printing.PrintDocument

  Dim PrintDlg As New PrintDialog
  PrintDlg.Document = PrintDoc
  PrintDlg.PrinterSettings = PrintDoc.PrinterSettings

  If PrintDlg.ShowDialog <> DialogResult.OK Then
    Exit Sub
  End If

  AddHandler PrintDoc.PrintPage, AddressOf PrintHandler
  PrintDoc.Print()
End Sub
