Barcode in PHP
An example how to use StrokeScribe barcode generator to produce barcodes in PHP. Barcodes shown here are GIF images.
How to Proceed
- Download and install the barcode generator on your web server.
- Create a php file in your website folder.
- Paste the following PHP code into the file.
- Open the page in a browser.
You may also need to enable the COM extension in the php.ini (see more info in the PHP:COM Manual):
[PHP_COM_DOTNET]
extension=php_com_dotnet.dll
extension_dir = "ext"
The Code Example
<?php
$ss = new COM("STROKESCRIBE.StrokeScribeClass.1");
$ss->Text = "ABCD123";
$ss->Alphabet = 25; //25=QRCODE
$w = $ss->BitmapW;
$h = $ss->BitmapH;
$arr = $ss->GetPictureArray(1, $w*5, $h*5); //1=GIF
if($ss->Error)
{
echo $ss->ErrorDescription;
return;
}
header("Content-Type: image/gif");
foreach ($arr as $byte)
{
echo (chr($byte));
}
?>
Some words about choosing the image's width/height:
- The BitmapW/BitmapH properties show the minimum picture size that fits the barcode.
- For square barcodes (QR Code, Data Matrix), specify the same value for width and height: GetPictureArray(1, w, w) or GetPictureArray(1, h, h).
- For linear barcodes (CODE-128, EAN-13), you need to use the value received from BitmapW (and it's multiplies) for the picture width and absolutely any value for height: GetPictureArray(1, barcode.BitmapW*3, 100).
Code Snippets by Barcode Type
All Barcode Types
How to Encode a Byte Array
$ss->CodePage = -1;
$a = array(0xce, 0x01, 0x02, 0x03);
$ss->Text = $a;
Mobile-friendly Barcodes with National Characters
The first way is to create/edit your php file in UTF-8:
$ss = new COM("STROKESCRIBE.StrokeScribeClass.1", NULL, CP_UTF8); //tell the COM library you are using UTF-8 in your data strings
//You also may use the com.code_page ini setting.
$ss->Alphabet = 25;
$ss->CodePage = 65001; // = UTF-8
$ss->Text = "ΞΟΠΡΣΤΥΦ"; //directly use UTF-8 in you PHP code
The second way is to pass a pre-encoded data in a byte array:
$ss = new COM("STROKESCRIBE.StrokeScribeClass.1");
$ss->Alphabet = 25;
$ss->CodePage = -1; //disables code page translation"
$a = array(0xce, 0x9e, 0xce, 0x9f, 0xce, 0xa0, 0xce, 0xa1, 0xce, 0xa3, 0xce, 0xa4, 0xce, 0xa5, 0xce, 0xa6);
$ss->Text = $a;
CODE 128
To create a Code 128, modify your code in the following way:
$ss = new COM("STROKESCRIBE.StrokeScribeClass.1");
$ss->Alphabet = 5; //CODE128
$ss->Text = "ABCDEF";
//if you want to specify an alternative text below the barcode:
$ss->TextBelow = "AB CD EF";
$w = $ss->BitmapW;
$h = $ss->BitmapH;
$arr = $ss->GetPictureArray(1, $w*2, $w); //1=GIF
QR Code
To create a QR Code, modify your code in the following way:
$ss->Alphabet = 25;
$ss->Text = "ABCDEF";
How to Modify the Error Correction Level
$ss->QrECL = 2;
How to Force the Minimum Matrix Size
$ss->QrMinVersion = 11;

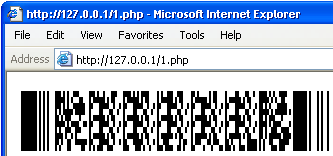

PDF417
To create a PDF417 barcode, modify your code in the following way:
$ss->Alphabet = 6; //PDF417
$ss->Text = "123ABC";
$w = $ss->BitmapW;
$h = $ss->BitmapH;
$arr = $ss->GetPictureArray(1, $w*2, $w); //1=GIF
To create a Compact PDF417:
$ss->Alphabet = 6;
$ss->CompactPDF417 = true;
How to Set the Non-default Error Correction Level
$ss->PDF417ErrLevel = 2;
How to Fix the Number of Rows or Columns
$ss->PDF417Cols = 5;
$ss->PDF417Rows = 10;
DATA MATRIX
To create a Data Matrix barcode, modify your code in the following way:
$ss->Alphabet = 8; //DATAMATRIX
$ss->Text = "ABCDEF";
$ss->DataMatrixMinSize = 132;
$w = $ss->BitmapW;
$h = $ss->BitmapH;
$arr = $ss->GetPictureArray(1, $w, $h);
How to Force the Minimum Matrix Size
$ss->DataMatrixMinSize = 132;
How to Modify the Quiet Zone Size
$ss->QuietZone2D = 0;
