Making Barcodes in LibreOffice Calc with Fonts

An example of making barcodes in Calc with plain-DLL version of StrokeScribe barcode generator and specialized TrueType barcode fonts.

How to Proceed

Download and install the barcode generator. You need at least version 5.2.31 to test this example.
Make sure you have configured the macro security settings.

Building a Barcode Formula

1. Create a new macro module. Press Alt + F11. Select My Macros -> Standard and press New:

2. Paste the following code into the module.

Expand/Collapse

' Function definitions for 64-bit Calc
Private Declare Function Initialize Lib "StrokeScribeDL64.dll" Alias "Initialize" () as Long
Private Declare Function SetTextProp Lib "StrokeScribeDL64.dll" Alias "SetTextPropA" (ByVal name as String, ByVal val as String) as Long
Private Declare Function SetLongProp Lib "StrokeScribeDL64.dll" Alias "SetLongPropA" (ByVal name as string, ByVal val as Long) as Long
Private Declare Function GetFontOut Lib "StrokeScribeDL64.dll" Alias "GetFontOutA" (ByRef val as String, ByRef len as Long) as Long

' Barcode type definitions. More constants.
Const QRCODE = 25
Const DATAMATRIX = 8
Const CODE128 = 5
Const PDF417 = 6

Public function CreateBarcodeFont(data as String) as String
  Dim rc as Long
  rc = Initialize ()
  if rc<>0 then
    Print ("Initialize() error: " & rc)
    exit function
  endif

  rc = SetLongProp ("Alphabet", QRCODE) ' or DATAMATRIX
  if rc<>0 then
    Print ("SetLongProp() error: " & rc)
    exit function
  endif

  rc = SetTextProp ("Text",  data)
  if rc<>0 then
    Print ("SetTextProp() error: " & rc)
    exit function
  endif

  Dim fontString as String * 8000
  Dim fontLen as long
  fontLen = Len (fontString)
  rc =GetFontOut (fontString, fontLen)
  if rc<>0 then
    Print ("GetFontOut() error: " & rc)
    exit function
  endif

  CreateBarcodeFont = fontString
end function

3. Make a large cell that will fit the barcode.

4. Format the cell with the StrokeScribe 2D font.

5. Paste the following into the formula field:

= CREATEBARCODEFONT("ABC")

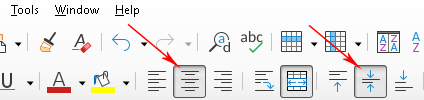

6. Center the barcode in the cell:

How to Customize the Barcode

Setting the QR CODE Error Correction Level

rc = SetLongProp("Alphabet", QRCODE)
rc = SetLongProp("QrEcl", 3) 'ECL=H

Producing Pdf417 Barcodes with Fixed Number of Rows or Columns

rc = SetLongProp("Alphabet", PDF417)
rc = SetLongProp("PDF417Cols", 4)
rc = SetLongProp("PDF417Rows", 15)

Forcing the Minimum Matrix Size of DATA MATRIX Barcodes

rc = SetLongProp("Alphabet", DATAMATRIX)
rc = SetLongProp("DataMatrixMinSize", 40)
